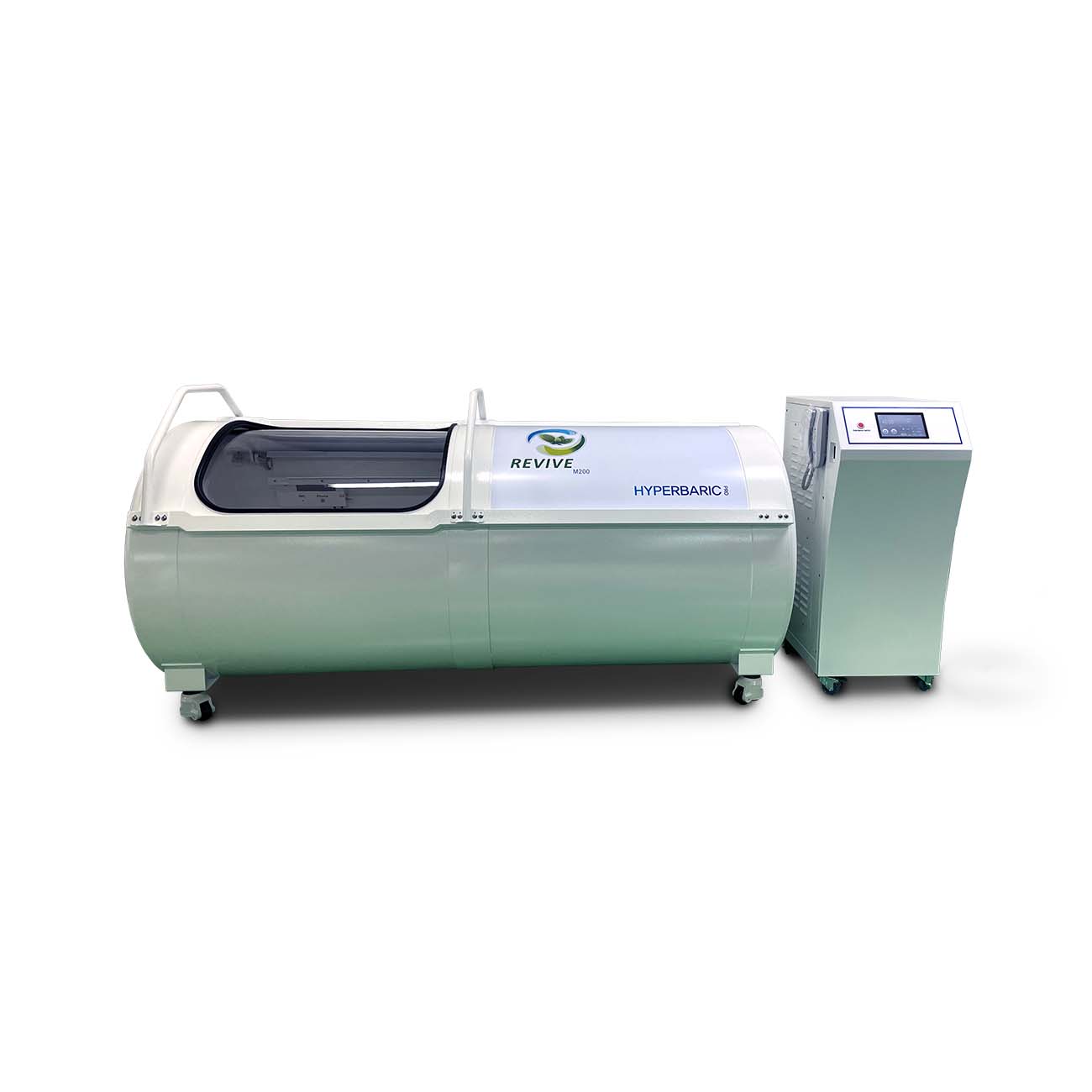

Hyperbaric Oxygen Chamber 36 inch Diameter 2 ATA

$49,900.00

This Hyperbaric Hardshell Oxygen Chamber provides pressures up to 2.0 ATA and is designed for durability and comfort. It also offers ease of entry and exit along with many more advanced features, available today in the hyperbaric product market space.



[title text="HYPERBARIC OXYGEN CHAMBER FEATURES:"]

[row]

[col span="4" span__sm="12"]

  • Delivers safe and effective oxygen at 2 ATA or 100 kPA.
  • Progressive controls allow incremental pressure to increase and decrease intra-session in increments of 10 KPA.
  • Customers can breathe 97% Oxygen via a facemask, Cannula or Headset optionally.
  • Smart System monitors and maintains safe CO2 levels.
  • Features customizable settings for each session as follows: Usage Time, Pressure, and Temperature.
  • All controls are available via a simple touchscreen display on both the internal and external chamber allows total control of the chamber either internally or externally.

[/col]
[col span="4" span__sm="12"]

  • The sliding glass door makes for ease of entry and exit and also allows for ample light into the chamber while also providing the ability to view clients easily.
  • Features an emergency pressure release valve on the inside of the chamber to speed up depressurization in an emergency.
  • Provides the best quality and features in this price point whereas others offer the same quality at double the price.
  • Features ground protection on the entire chamber body to ensure any electrical static impulses are removed.
  • Additional Oxygen Inlet Ports are available.[/col]
  • Advanced design dual seal system.

[col span="4" span__sm="12"]

  • Air Conditioning system is included to keep you comfortable during your session. Can be cooled down to 18C (64.4F).
  • Equipped with an internal pressure gauge to allow the user to observe the pressure.
  • Can be operated continuously making it ideal for doctor's offices.
  • Can be operated without the assistance of a 2nd person.
  • Business financing is available. Call for details.
  • Can fit through a 38-inch doorway.
  • 2 Year Warranty

[/col]

[/row]
[title text="Safety Features and Advanced Design"]

  1. Pressure cut off by software - Automatic pressure relief when the pressure increases over 110 kPa in the chamber.
  2.  Mechanical Pressure cut off - A safety valve (certified product) is installed to prevent the internal pressure from increasing over 120 kPA.
  3.  Emergency release switch - Quickly release the pressure from inside to stop the session and depressurize the chamber by operating one-touch valve in case of emergency.
  4. Automatic emergency power off system - Automatic pressure relief in case of power failure or power off.
  5. Custom Controls - Automatically controls your session time, pressure, and temperature and depressurizes the chamber upon completion of the session.
  6. Real-Time Graph - Allows users to observe the current treatment progress.
  7. The System detects temperature, humidity, and carbon dioxide inside the chamber and displays it on the inside allowing automatic ventilation at all times.
  8. The Interphone system allows the user to stay in communication even in case of a power failure.
  9. A wide transparent window allows being seen from inside the chamber and helps address the anxiety concern of some.
  10. 40L / min ~ 100L / min pressure valve can adjust the flow rate according to the operator's choice.
  11. Easy installation and operation.

[title text="Specifications of oxygen health systems hyperbaric hard chamber"]

Hyperbaric Chamber Usage :
Operation Pressure :
Size :
Weight:
Material :
Maximum Weight Limit
One Patient
10~100 kPa (1.1 ~ 2.0 ATA)
86-inch (L) x 36 W - interior
280 kg or 617 lbs
Steel
250 kg or 550 lbs
All In One System Air Volume :
Voltage :
Power Consumption :
Size:
Weight :
Material
Installation Space
100 L / Min
115 VAC, 50/60 Hz
950 VA
(W) 17.7" x (D) 25.3" x (H) 43"
94 kg
Steel
(W) 3000 mm / 118-inches (D) 1500 mm / 59-inches



WEIGHT POWER SIZE
Oxygen Concentrator

(See Spec Sheet)

(Click to View the Devilbiss 10 Service Manual)

42 lbs 640 Watt 13" L x 12" W x 24.5" H
OXYGEN CONCENTRATOR FEATURE
10 LPM ★ FDA Approved ★ PSA molecular sieve high technology. ★ Non-Toxic and ECO-Friendly. ★ 18 to 20 PSIG @ 95% Purity. ★ Continuous flow oxygen production, no oxygen tank required. ★ 630 Watt (10 Amps) Heavy-duty motor.[block id="oxygen-concentrator"]

The chamber body easily passes through doorways 38 inches wide. The handles can also be detached which would allow the unit to pass through an 85 cm doorway.
